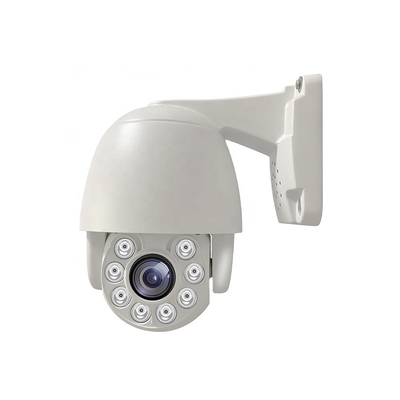

Outdoor 80m IR 8MP 5X zoom PTZ dome PoE IP camera
8.0MP 1/2.8” Sony IMX415 CMOS sensor
Up to 3840 x 2160 resolution
5X optical zoom
8PCS IR LEDs, up to 80m IR distance
Built-in PoE
Rapid focus
3" body construction, IP66, IK10
| Camera | |
| Model No. | VH-NP8005-S02 |
| SoC | MSTAE328 |
| Sensor | 1/2.8" CMOS 8MP Sony IMX415 |
| Effective Pixel | 3840(H) x 2160(V) |
| Electronics Shutter Time |
Auto: PAL 1/25-1/10000Sec; NTSC 1/30-1/10000Sec |
|
Minimun Illumination |
0.01Lux/F1.2(AGC ON), 0Lux IR on |
| Main stream | 3840 x 2160/20fps, 3072 x 2048/30fps, 2592 x 1944/30fps, 1920 x 1080/30fps, 1080 x 720/30fps |
| Sub stream | 720 x 480/30fps, 640 x 480/30fps, 360P/30fps, QVGA/30fps |
| Lens | 5X f=2.7~13.5mm |
| Communcation Protocol | TCP/IP, HTTP, NTP, IGMP, DHCP, UDP, SMTP, RTP, RTSP, ARP, DDNS, HTTPS, P2P |
| Video Compression | H.265/H.264/M-JPEG |
| BLC | Support |
| AGC | Auto/manual |
| WB | Auto/manual/indoor/outdoor |
| DNR | 2DNR, 3DNR |
| WDR | DWDR |
| S/N Ratio | ≥50dB |
| Audio | Optional |
| Audio Compression | G711 |
| PoE | Built-in |
| TF Card Slot | Optional and up to 128G |
| PTZ | |
| Software Control | IE, CMS, management platform, App |
| Mobile App | Yes (iOS & Android) |
| Rotation Range | Pan: 0~355°, Tilt: 0~92° |
| Rotation Speed | Pan: 20°/S, Tilt: 20°/S |
| Auto Flip | Horizontal: 180°, Vertal: 93° |
| Presets | 255 |
| A-B Scan | Scan speed 1~9 level settable |
| Patrol Scan | 8 partols, up to 16 presets for each patrol |
| Pattern Scan | 4 pattern scans, record time over 10 minutes for each scan |
| Scheduled Task | A-B scan, 360° scan, patrol(patrol1~4 are selectable), pattern scan(patern scan 1~4 are selectable), support max. 6 tasks |
| Autamatic Calibration | Yes |
| Quick Command | Pelco instruction set |
| IR | |
| LED | 8PCS IR LEDs |
| IR Distance | Up to 80m |
| IR Power On | Auto, color, B/W, timing |
| Genral | |
| Language | English, Chinese |
| Power | DC 12V 2A |
| Working Temperature | -30~+60°C |
| Working Humidity | ≤95% |
| Protection Level | IP66 Standard, IK10, 4000V lightning protection, surge protection and voltage transient protection |
| Dimensions | Ø117mm x 187mm(not include bracket) |
| Weight | 1kg |
| Package | |
| Inner Box | 1 piece/box, box size 19 x 19 x 29cm, G.W. 1.5kg |
| Carton Box | 6 piecs/carton, box size 60 x 34 x 43cm, G.W. 10kg |
Packaging: Surrounded by foam(some models are wrapped in plastic bag also), then in giftbox(inner box) and several pieces in a carton box, some models in carton box directly.
Shipping: Express (TNT, DHL, FedEx, UPS, EMS, etc), Air, Ocean
A. If the weight is under 100KG, it can be sent by express or air
B. If the weight is over 100KG, we recommend sending them by Ocean
Shipping Notice:
In order to make your goods arrive betimes, please make sure your name is complete, shipping address is detailed, post code and phone number are correct.
Shenzhen Vanhua Technologies Co., Ltd. is a professional IoT (Internet of Things) solution provider with video as the core, providing security, visual management and big data service for the world. Our main products include IP camera, AHD camera, NVR, DVR, decoder, VMS and so on.
Our advantages:
1. One-stop IoT and video surveillance solution supplier. We offer solution, supply product and installation guidance according to client's demand and budget;
2. Good quality and competitive price;
3. OEM, ODM and small order are available.
Q1. What kind of service can you provide?
A: Hardware and software OEM/ODM service
Q2. How can I check the product quality?
A: 1. Online demo is available, please contact us, we will show you during our working time
2. You can buy a sample for quality test, sample time 3-8 working days after payment confirmed
3. We have online store, we can sell single product to you, online payment supported
4. We will attend some show at your local place at some time, please contact us for more details
Q3. What is product warranty?
A: 2 years for cameras (Keyboard for 1 year)
Q4: What if there is defective product?
A: Principle:"To decrease loss for both sides"
1. Remote Support first
2. If remote support can not work,
2-1. For small QTY, we will deduct the cost in the next order
2-2. For large QTY, we will accept return of items
2-3. If item return,to save the cost of shipping,we advise sending back parts that defective
3. We are cooperative to help solving the problem even it is not our fault
4. More details, please contact us
Q5: Time for production and delivery?
A: 1. Sample 3-8 working days, mass production 7-15 working days
2. Delivery time: Via Express delivery, 3-7 working days
Q6: How to place an order?
A: Most of our products in Alibaba are RTP(ready to ship), and Trade Assurance Order is available, so buyers in some areas can start order directly, if can't, please send below info to us:
1. Enterprise name or individual name
2. Address with zip code, telephone (or cellphone) number, tax number (for some areas)
3. Model No. and quantity which you decide to order, and detailed info if you have any special requests
