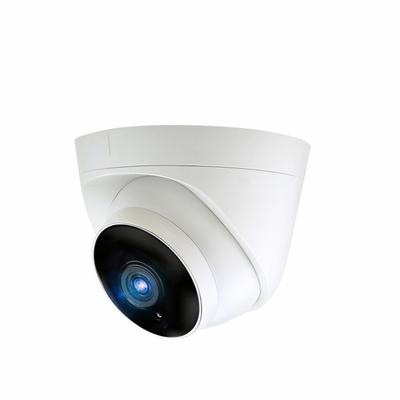

1MP 720P AHD IP66 Waterproof Plastic Dome Surveillance Security CCTV Camera,hikvision cctv camera dahua cctv camera cctv hikvision 720P / 960P / 1080P monitoring camera
1MP 720P AHD IP66 Waterproof Plastic Dome Surveillance Security
CCTV Camera
1. 1MP 720P progressive scan CMOS, the capture movement image has no serration.
2. Support coaxial hd output, image clear,exquisite, resolution 720P.
3. Low illumination level, 0.01Lux @ (F1.2,AGC ON), 0 Lux with IR.
4. Support ICR Automatic switch of infrared filter, automatic color turning black function, achieve round-the-clock monitoring
5. Support OSD menu control, suitable for user-defined settings.
6. Support 2D digital noise reduction, ensure that the picture is clean and delicate in all kinds of environments
7. Support smart IR function, effective prevention of near-infrared overexposure problem.
8. A matrix light spot lens, matching sensor area, greatly improve the utilization of light energy.
9. Comply with IP66 waterproofing design, high reliability.
Product Model |
SM-IPAHD-4001 |
|||
Camera |
||||
Resolution |
1MP |
1.3MP |
2MP |
3MP |
Sensor Type |
Progressive Scan CMOS |
1.3 Mega Progressive Scan CMOS |
2.0 Mega Progressive Scan CMOS |
3.0 Mega Progressive Scan CMOS |
Effective pixels |
1296(H)×732(V) |
1930(H)×1088(V) |
2056(H)×1536(V) |
|
Min. illumination |
0.1Lux @ (F1.2,AGC ON),0 Lux with IR |
|||
Shutter |
1/ 25 s ~ 1/ 100,000 s |
1/25s ~ 1/50,000s |
||
Lens |
3.6 mm (2.8mm , 6mm , 8mm , 12mm ,16mm optional) |
3.6mm(6mm,8mm,12mm,16mm optional) |
||
Len type |
M12 |
|||
Day & Night |
IR cut filter with auto switch |
|||
Synchronization |
internal Synchronization |
|||
Frame Rate |
720p@ 25fps |
1080p@ 25fps |
2056*1536p@ 25fps |
|
Video output HD |
1CH BNC AHD output, HDTV basic |
|||
S/ N Ratio |
> 62dB |
|||
Meun |
||||
AGC |
Support |
|||
White Balance |
Auto / manual /PUSH/8000K/6000K/4200K/3200K/ hold |
|||
Privacy Policy |
Switch, supports up to 2 areas |
|||
Language |
English / Chinese |
|||
Function |
Mirror image (horizontal, vertical, center), etc |
|||
General |
||||
Working temperature |
-40℃- 60℃, humidity less than 90% |
|||
Power Supply |
DC12V ± 15% |
|||
IR Distance |
30m - 40m |
|||
Power Consumption |
4W Max |
|||
Protection Grade |
IP66 |
|||
Dimension |
Φ110×93.2 |
|||
Weight |
200g |
Why choose to work with Shenzhen Smartife Sci.& Tech.Co., LTD?
1. Customers like our products because our products are good quality, economical and also we provide great support (We can 100% fully meet your personalized requirements, such as revise software for you, make your personalized packing, silk print your logo in our products, and LCD menu with your language version and so on)
2. We are a manufacturer specializing in design, manufacturing, marketing, services of safety alarm systems, CCTV monitor systems for more than 10 years. By strict management, strong manufacturing ability, good design and high quality output, we are able to attain ISO9001:2000, CE, RoHS, CCCs certificate. With decades of years hard working. we have built up a worldwide recognized brand "Smartife" in security industry
3. With 2-years warranty, any false items can return to us for repairing or ship free replacement with next new order without returning.
4. Our products are with private mold which can help you protect your market betters. With unique designs, products looks more expensive, which bring you more profits. Also we with 10 different cooperation molds available as below:
1.)Developing and production according to customers' different requirements based on our products
2.)Developing and production according to customers' sample enclosure and requirement on function
3.)Developing .Injection and production according to customers requirement on function and mold for outer enclosure
4.)Developing. Opening mold. Injection and Production according to customers' idea on function
FAQ and After-sale service:
How to order from us?
1.Please confirm the model numbers and quantities you need to let me know.
2.Send you PI to specify the total amount you need to pay after getting your confirmation.
3.Put your order down to production after getting your bank copy.
4.Send them by express delivery, by common air, by sea, or other available shipping ways appointed by customers, and let you know the tracking number and estimated time of arrival after the items are finished.
Flexible MOQ:
1.No limit for the quantity for sample order.
2. From the second order, the MOQ is 50pcs for each model.
3.OEM MOQ is 100pcs/model.
Convenient Payment:
Various payment ways can be used: T/T,Western Union, Moneygram,Paypal.
Fast Lead Time:
1. 2 working days for sample order .
2. 3 - 5 working days for general order.
3. 13-15 working days for big order.
Economic and Safe Shipment :
By our forwarder: help you to find the most appropriate way( Fedex, DHL, TNT, UPS, EMS, HongKong Post and Aramex, Common Air, Sea Shipping).
By your own forwarder.
For the safety of the packages, we take necessary measures for every order, even a small order.
Professional OEM/ODM Service
1.Offer the most professional personalized packages: silk print your logo on the products, personalized labels, giftboxes, user’s manuals, blisters, etc, if you need.
2. Accept ODM orders: if you have any idea on items, we can help you to design and put it into production and welcome your inquiries!
Warranty Policy:
1. All products will have been 100% strictly tested again and again in workshop before packing.
2. All products will be well packed before shipping.
3. 2 years warranty for all of products after the ship date: for any false items you get, we will repair or replace it for free.
